Heat Pump System Guide
Low-carbon heating system extracting heat from air or ground.
UK Market Share
3%
Avg Efficiency
300%
Price Range
£7,000 - £14,000
Typical Warranty
20yr
What Does a Heat Pump System Look Like?
Typical heat pump system installation in a UK home
How Heat Pump Systems Work
Overview
Heat pumps are a renewable heating technology that extracts heat from outside air or ground and transfers it indoors. They are extremely efficient, typically producing 3-4 units of heat for every unit of electricity used. The government is promoting heat pumps as part of the UK's net-zero carbon strategy.
The Process:
An outdoor unit extracts heat from the air (air source) or ground (ground source) using a refrigerant cycle - the same technology used in refrigerators but in reverse. This heat is then transferred to your heating system and hot water cylinder. Heat pumps work most efficiently with underfloor heating or large radiators as they run at lower temperatures (45-50°C) than traditional boilers.

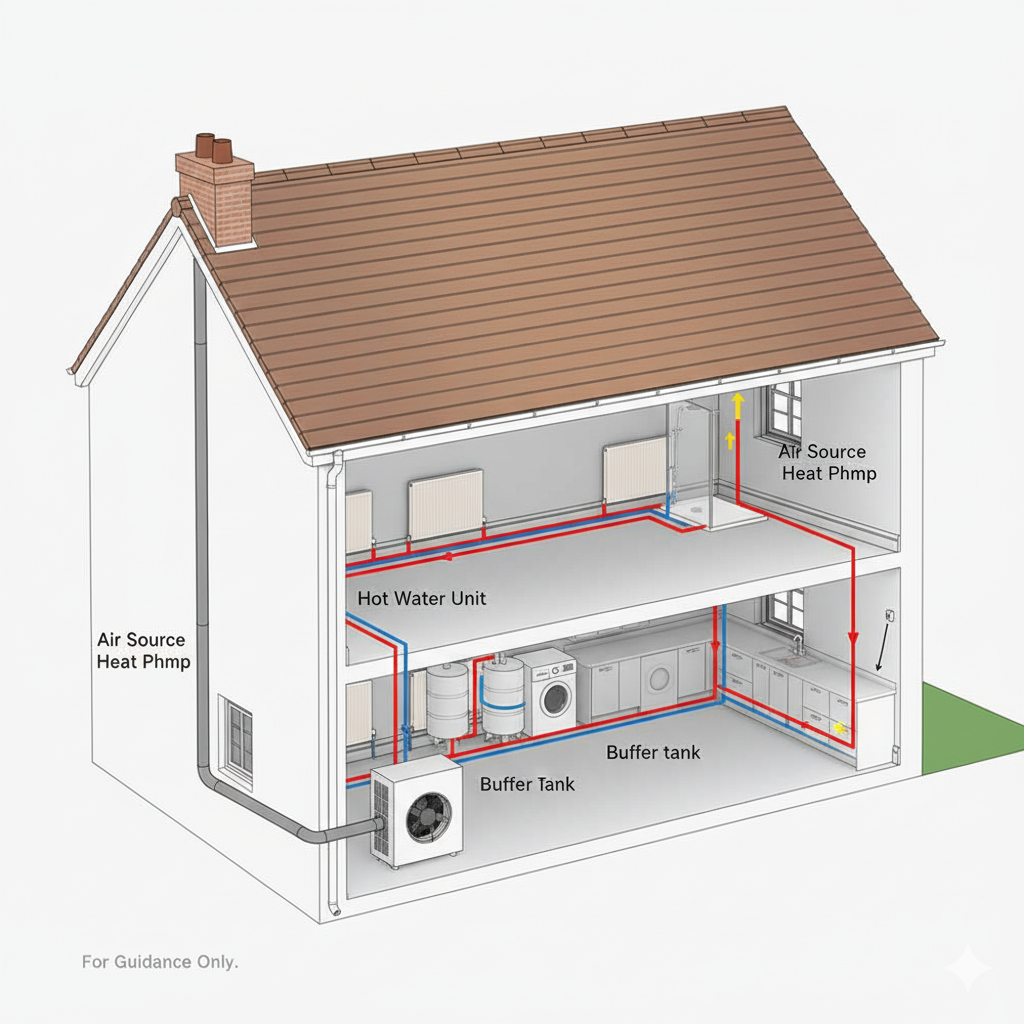

System Diagram
Complete system layout showing water flow and heating distribution
Heat Pump System Pros and Cons
Advantages
Low carbon emissions
Uses renewable energy from air or ground, dramatically reducing carbon footprint.
Government grants available
Eligible for Boiler Upgrade Scheme with grants up to £7,500.
Lower running costs long-term
Can be 3-4 times more efficient than traditional boilers.
No fuel storage needed
Doesn't require gas connection or oil tank.
Can provide cooling in summer
Some systems can reverse to provide air conditioning.
Long lifespan
Typically lasts 20+ years with proper maintenance.
How Heat Pump Systems compare to other types
Disadvantages
High upfront cost
Initial installation costs £7,000-£14,000 even with grants.
Requires larger radiators
Often need to upgrade radiators or add underfloor heating.
Lower water temperature
Heats water to 45-50°C vs 70-80°C from gas boiler.
Space needed for unit
Outdoor unit required with space around it for airflow.
Less effective in very cold weather
Efficiency drops when outdoor temperature falls below -5°C.
Noise concerns
Outdoor unit can generate noise, may affect neighbors.
Is a Heat Pump System Right for Your Home?
Suitability Overview
✓ Best suited for:
Well-insulated properties, homes with space for outdoor unit, new-build properties, properties off gas grid, homes with larger radiators or underfloor heating, environmentally-conscious homeowners eligible for government grants
✗ Not suitable for:
Poorly insulated properties, homes with very limited outdoor space, properties with small radiators that cannot be upgraded, properties where installation cost is prohibitive, homes requiring high-temperature heat
Ideal property types
Detailed Suitability by Property Type
| Property | Beds | Baths | Score | Recommendation |
|---|---|---|---|---|
| Detached House | 4 | 2 | 9/10 | Excellent Great for detached houses with garden space and good insulation |
| Bungalow | 2 | 1 | 8/10 | Good Suitable for bungalows with outdoor space for unit |
| Semi-Detached | 3 | 2 | 7/10 | Good Viable for semi-detached if well-insulated and space available |
| Terraced House | 2 | 1 | 5/10 | Fair Can work but outdoor space and neighbors may be considerations |
| Flat | 1 | 1 | 4/10 | Poor High cost not justified for small flat, no outdoor space |
Space Requirements & Installation
Components You'll Need Space For
Outdoor heat pump unit
RequiredSize: 1200mm H x 1000mm W x 500mm D
Location: Outside wall or garden
Hot water cylinder
RequiredSize: 1800mm H x 600mm diameter
Location: Utility room or garage
Indoor control unit
RequiredSize: 300mm H x 200mm W x 100mm D
Location: Utility room or hallway
Typical Installation
Professional installation takes 1-2 days depending on your existing system
Annual Running Costs
What You'll Pay Each Year
Small (1-2 bed)
£850
per year (estimated)
Medium (3-4 bed)
£1150
per year (estimated)
Large (4+ bed)
£1450
per year (estimated)
💡 Tip: Running costs vary based on your heating usage, insulation quality, and local energy prices. These figures are UK averages based on typical usage patterns.
Popular Heat Pump System Models
| Manufacturer | Model | Output | Efficiency | Price | Warranty |
|---|---|---|---|---|---|
| Daikin | Altherma 3 H HT | 16 kW | 350%A-rated | £9,000 | 5 years |
| Mitsubishi | Ecodan | 14 kW | 340%A-rated | £8,500 | 5 years |
| Vaillant | aroTHERM plus | 12 kW | 330%A-rated | £8,000 | 5 years |
Prices shown are for the boiler unit only. Installation costs typically range from £1,500 - £3,000. Get free quotes from local installers for accurate pricing.
Frequently Asked Questions
How much does it cost to install a heat pump?
Air source heat pumps cost £7,000-£13,000 installed, but the government Boiler Upgrade Scheme provides £7,500 grant, reducing the cost to similar or less than a traditional boiler installation.
Are heat pumps noisy?
Modern heat pumps operate at around 40-60 decibels (similar to a refrigerator). They're quieter than older models but may disturb close neighbors if poorly positioned. Planning rules require consideration of noise.
Will a heat pump work with my existing radiators?
Heat pumps work best with larger radiators or underfloor heating as they run at lower temperatures. Existing radiators may need upgrading to larger sizes for optimal performance, though some systems can work with existing radiators.
Do heat pumps work in cold weather?
Yes, modern heat pumps work well down to -15°C or lower. They extract heat from air even in cold weather, though efficiency decreases slightly in very cold temperatures. They're used successfully in Scandinavian countries.
